Drive system:
3-Shaft Mechanical Drive,Semi-servo,Full servo can be choose by customer's requirement
Product size: S: 390*280 M: 450*320 L: 500*320 XL: 525*330
Control system:
PLC control system,operating on the touch screen,man-machine interface,match with a LED digital display to control the production by pattern digization.
Item No.:
zz-03Payment:
30% T/T deposit,70% Balance before shippingProduct origin:
ChinaColor:
CustomizedShipping port:
ShanghaiLead Time:
About 180daysPrice Range:

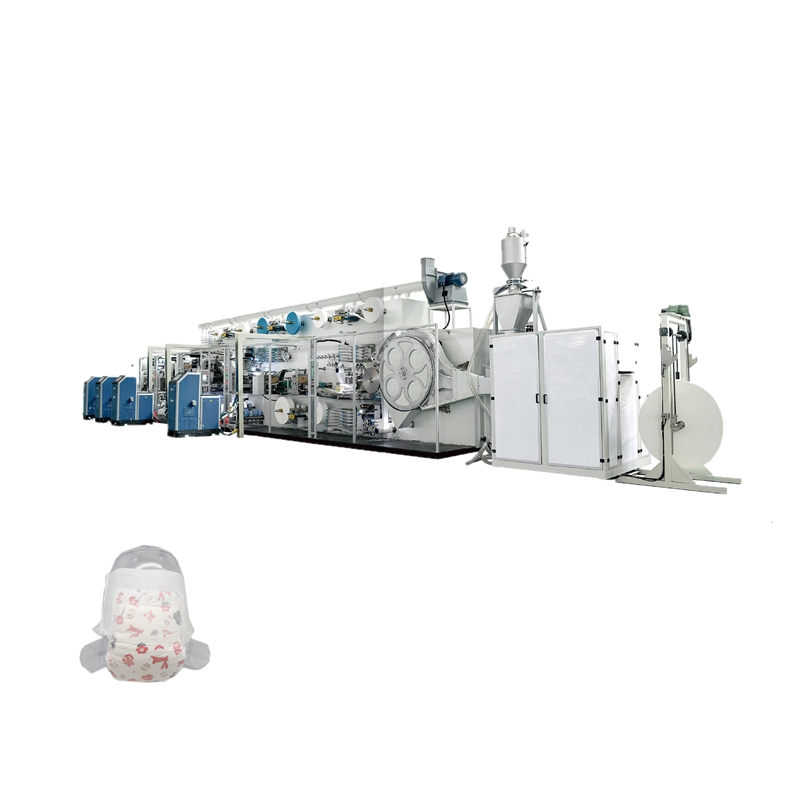

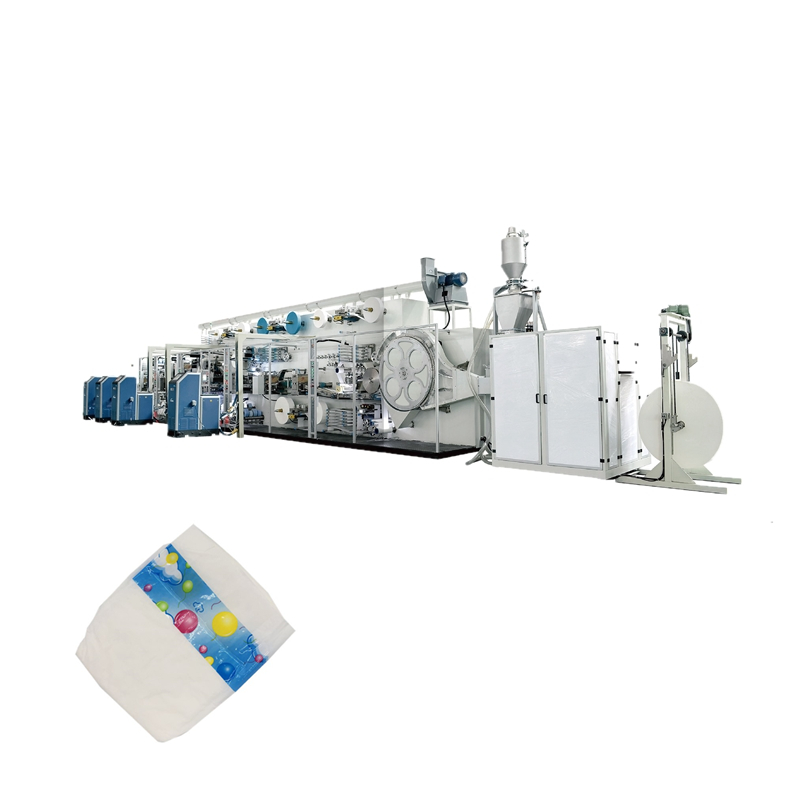

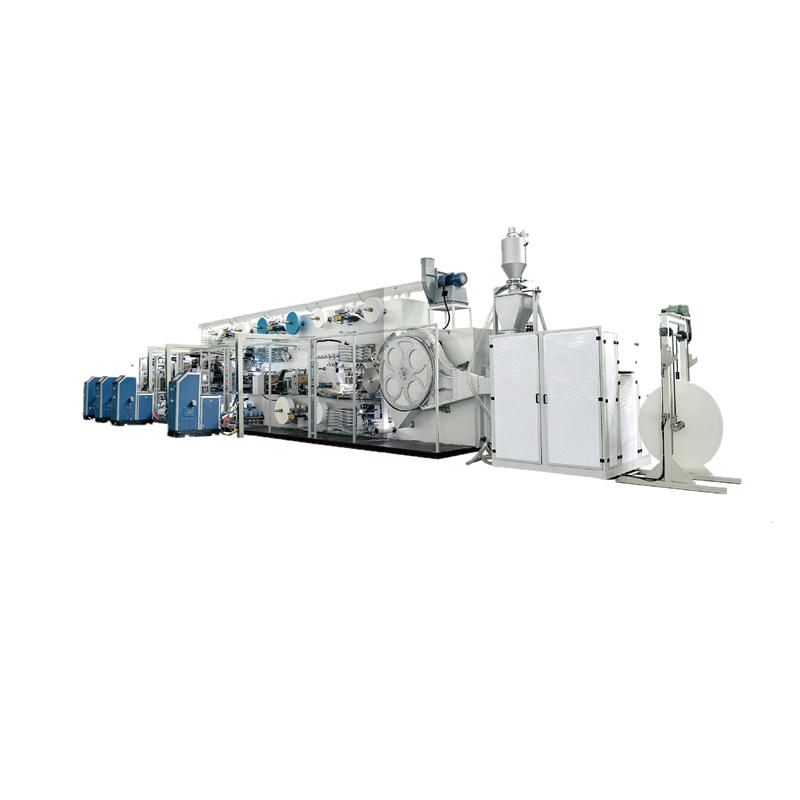

$423000-$865000/setzz-03 I shape automatic/servo baby diaper machine
| Subject | Parameter |
| Overall size(L*W*H) |
24M*4M*3.6M(For reference only) |
|
Machine size(L*W*H) |
22m*2.1m*3.3m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 450pcs/min |
| Pass precentage | 98% |
| Work efficiency | 85%-90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 280KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 55T |
| Machine color | Customized |
2. Product size:
S: 390*280 M: 450*320 L: 500*320 XL: 525*330
3. Control system:
PLC control system,operating on the touch screen,man-machine interface,match with a LED digital display to control the production by pattern digization.
4.Tension system:
Up & Down Tissue,ADL,Back sheet,Top sheet,Cuff N.M,are adopt A& B shaft active unwinding by inverter motor.
5.Drive system:
3-shaft mechanical drive,semi servo,full servo can be choose by customer's requirements
6.Safety system:
It has safty device on the operating side,matched with urgent stop switch,High audio fan uses sound insulation or silencer.
7.Packing way:
Equipment with the stacker at the request of client.
8.Materials corrective system:
Germany BST automatic web guide system(optional)
Main Product:
1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line
Brief Introduction
Shanghai ZZ machinery Manufacture Co.,Ltd has consistebtly insist on the "quality is fundamental,develop with innovation" mangement concept,with a strong design and development team,equipped with advanced CNC Longmen center.Keep studying new products to meet the needs of different customers,and summarize the experience of cooperation with large comnpanies in local and abroad,continue to test and improve the existing machines,ensure the high quality and stability of the equipment,achieve better economic benefits,and win a good Reputation.
Our advantage:
1.Professional
zz have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.
2.Service:
"Quality as Fundamental, Development by Innovation" is our company culture.is professional engaged in researching,development,production,sales and service of hygiene product equipment.
3.Efficient:
Efficiency is the life of the company. zz attaches great importance to enterprise efficiency. Introduces advanced company management system for all of our team. According to production schedule to ensure timely finish of machine of customers.
